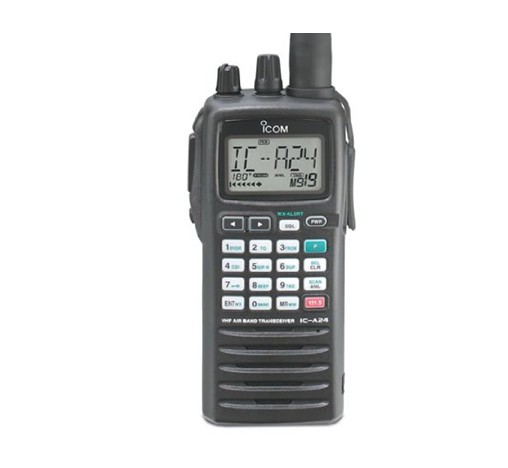

ICOM A24 航空手持台 1.3W
- 産品品牌 ICOM
- 産品價格 2900
- 産品描述
價格最實惠，性價比最高的航空台。功率不大，但實際使用中效果很好。...
上海羽航實測發射功率1.3W
IC-A24 航空波段收發信機
飛行中從容操控
簡便的單手操作是IC-A24最基本也是最重要的特征之一。清晰的标記、寬大的鍵盤為我們提供了非常人性化的設計。大型顯示器可以清晰 地顯示字母和數字，有助于快速識别頻率等信息。背光顯示器和背光夜 明鍵盤，讓您在夜間飛行也會感到非常便利和安全。
"Flip-flop"頻道返回功能
IC-A24自動記憶最後10個使用過的頻道。按動面闆上的返回 鍵【
】
【】，通過"Flip-flop"功能您就可以非常方便地返回這些頻道。它可以方便地在幾個頻道之間切換，例如NAV導航頻道和COM通信頻道。
注："Flip-flop"為雙穩态多諧振蕩器。
甚高頻全向信标導航功能
IC-A24 具有甚高頻全向信标導航功能。多普勒甚高頻全向信标DVOR模式顯示來自或者到達信标站的位置方向線，航向偏差指示器CDI模式顯示來自或者到達信标站的航向偏差。您也可以輸入預期的來自或者到達信标站的位置方向線并在顯示器上顯示航向偏差。使用美國版本時，雙工操作模式允許您在使用VOR導航的時候呼叫一個通信頻道。
外接直流電源接口
外接直流電源接口允許使用牆式标準充電器BC-110或者車用直流變換器CP-20。當安裝了電池組時，可以邊使用邊充電。
防水滴雨淋結構
在多雨潮濕的環境下，防水滴雨淋結構提供可靠的操作 。
* 符合相當于IPX4的國際标準IEC 60529 (2001)。
更多特點……
- 可以用六位字符命名的200 個存儲頻道(20 頻道×10組存儲庫)
- 專用頻率 121.5MHz 應急按鍵
- 當使用外接的頭戴式航空專用耳機時，側音功能可以讓您聽到自己講話的聲音
- 可以選購鎳镉或者锂離子電池組
- NOAA(美國國家海洋和大氣局)海洋氣象頻道
- 标簽掃描和存儲組掃描
- ANL(自動靜噪)可以減少噪音
- 低電量告警
性能指标:
頻率範圍：發射： 118.000-136.975 MHz
接收： 108.000-136.975 MHz,
氣象： 161.650-163.275 MHz
頻 道 數：200個 （20CH x 10組）
模 式： AM 氣象 FM
發射功率：5W、1.5W （PEP）
工作電壓：7.4/7.2V DC （電池） 11.0V DC 外接電源插口
工作溫度：–10°C to +60°C
尺 寸:54(W)×129.3(H)×35.5(D)mm
重 量：430g（約）
天線輸入：50歐 （BNC)

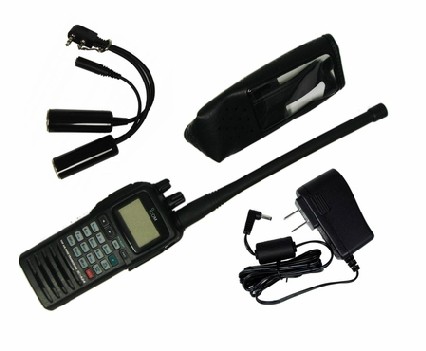

标配：
主機、電池、充電器、天線、背夾、提繩、說明書。
擴展設備
Pilot Communications PA-200IK for ICOM-A24 航空內通系統
Pilot Communications PA-200IK for ICOM-A24 航空內部通訊系統
可以實現雙耳機語音激活或選擇激活內部通訊系統，同時實現PTT發射按鍵外部通訊
PA-200IK For ICOM A4, A22 ，A24 or KX99 Transceivers
In this rapidly changing world of electronics, our industry is being bombarded by new innovative features from flat screen monitors to digitally enhanced audio systems. Some of our latest products, headsets and intercoms, have had a cell phone interface added so that you can communicate on the ground using your headset or have your cell phone as a back-up for a radio failure. The PA-200IK is one of those new products. The PA-200IK plugs directly into the ICOM A24 or Bendix-King KX-99 handheld radios.
The Pilot's Favorite Handheld is Here!
Easy to use while flying
Simple one-handed operation is the most essential feature of the IC-A24. The well labeled, large keypad provides user friendly operation. The large display shows both letters and numbers and is easy to see, making for fast frequency recognition. The display is backlit, and so is the keypad. The light stays on until you turn it off – a very handy feature for flying at night.
"Flip-flop" channel recall
The IC-A24 stores the last 10 channels used. You can easily recall those channels by pushing the "flip-flop" recall buttons on the front panel. It is convenient for switching between several channels, such as NAV and COM channels.
VOR navigation
The IC-A24 has VOR navigation functions. The DVOR mode shows the radial to or from a VOR station and the CDI mode shows the course deviation to/from a VOR station. You can also input your intended radial to/from the VOR station and show the course deviation on the display. In the USA version, the duplex operation allows you to call a COM channel, while you are using VOR navigation.
External DC power jack
An external DC power jack allows for operation with the wall charger, BC-110 or the cigarette lighter cable, CP-20. When the battery pack is installed, simultaneous charging during operation is also possible. In addition, an optional battery case, BP-208N, is available.
Water resistant construction
The water resistant construction provides reliable operation in wet conditions.
* Equivalent to IPX4 of the corresponding international standard IEC 60529 (2001).
